Chimney fans

SKOV-SECCO provides two different types of chimney fans: Ziehl evacuation fan and Q-line Multifan. Both are durable and of high quality to be used in livestock houses.

Ziehl Evacuation Fan

SKOV-SECCO offers evacuation fans by Ziehl that are compatible with the SKOV-SECCO chimneys. The 7-bladed variable speed chimney fans are available in three different sizes: 18’’ (455 mm), 22’ (260 mm), and 25’’ (635 mm).

Features and benefits:

• The motor and blades are molded in one piece, ensuring excellent reliability.
• Operates very quietly as the Ziehl-Abegg motor is known to be the quietest on the market.
• The 3-phase models are available upon request.

See the performance data below:

Q-line Multifan Mechanical Exhaust Ventilation

Descriptions:

Q-line Multifan by SKOV-SECCO are mechanical exhaust fans that are available in eight different sizes: 12’’ (305 mm), 14’’ (355 mm), 16’’ (405 mm), 18’’ (455 mm), 20’’ (510 mm), 22’’ (560 mm), 24’’ (610 mm), and 36’’ (915 mm).

*22’’ is made with a special order.

Features and benefits:

• Sturdy frame made with fiberglass material.
• Blades are made with polycarbonate.
• Variable multifan motor.
• Not included: PVC frame shutter

See the performance data below:

Q-line Multifan 50 Hz

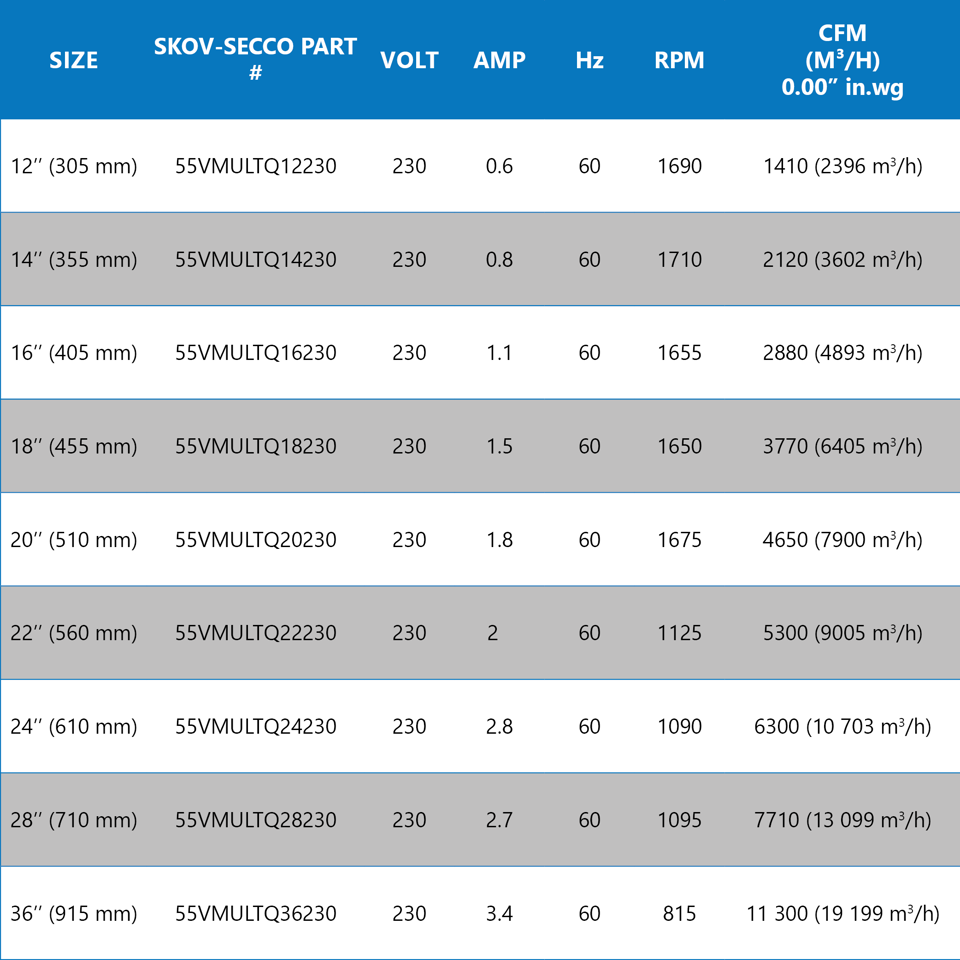

Q-line Multifan 60 Hz
